T574

The TYM T574 tractor, part of the Series 3 compact tractors, is built to take on tough jobs in tight spaces. With its robust 55 horsepower engine and a hitch lift capacity of 3822 lb, this tractor combines the best features from our compact and utility ranges, providing a perfect balance of high power output and maximized maneuverability.

​Experience Unmatched Power and Versatility with the TYM T574 Compact Tractor

The TYM T574 tractor, part of the Series 3 compact tractors, is built to take on tough jobs in tight spaces. With its robust 55 horsepower engine and a hitch lift capacity of 3822 lb, this tractor combines the best features from our compact and utility ranges, providing a perfect balance of high power output and maximized maneuverability.


Unleash Your Productivity in Narrow Spaces:

With its powerful lift capabilities packed into a compact body, the TYM T574 compact tractor enables you to perform tasks within the narrow spaces between garden beds. Whether you're tilling and leveling the land or scattering soil and seed treatment, this tractor empowers you to grow your own orchard or raise vegetable and fruit beds efficiently. It also offers shorter variations, making it an excellent choice for smaller greenhouse operations.


Engineered for Dynamic Implement Handling:

The TYM T574 tractor is engineered with telescopic links and stabilizers at the hitch, enabling you to attach and swap out rear implements of all sizes quickly and effectively. An external lever near the 3-point hitch allows for quicker implement changes, with the option to adjust the implement as soon as it is connected. This functionality allows operators to shift between tasks easily and work dynamically.



Premium Cabin for Enhanced Comfort and Productivity:

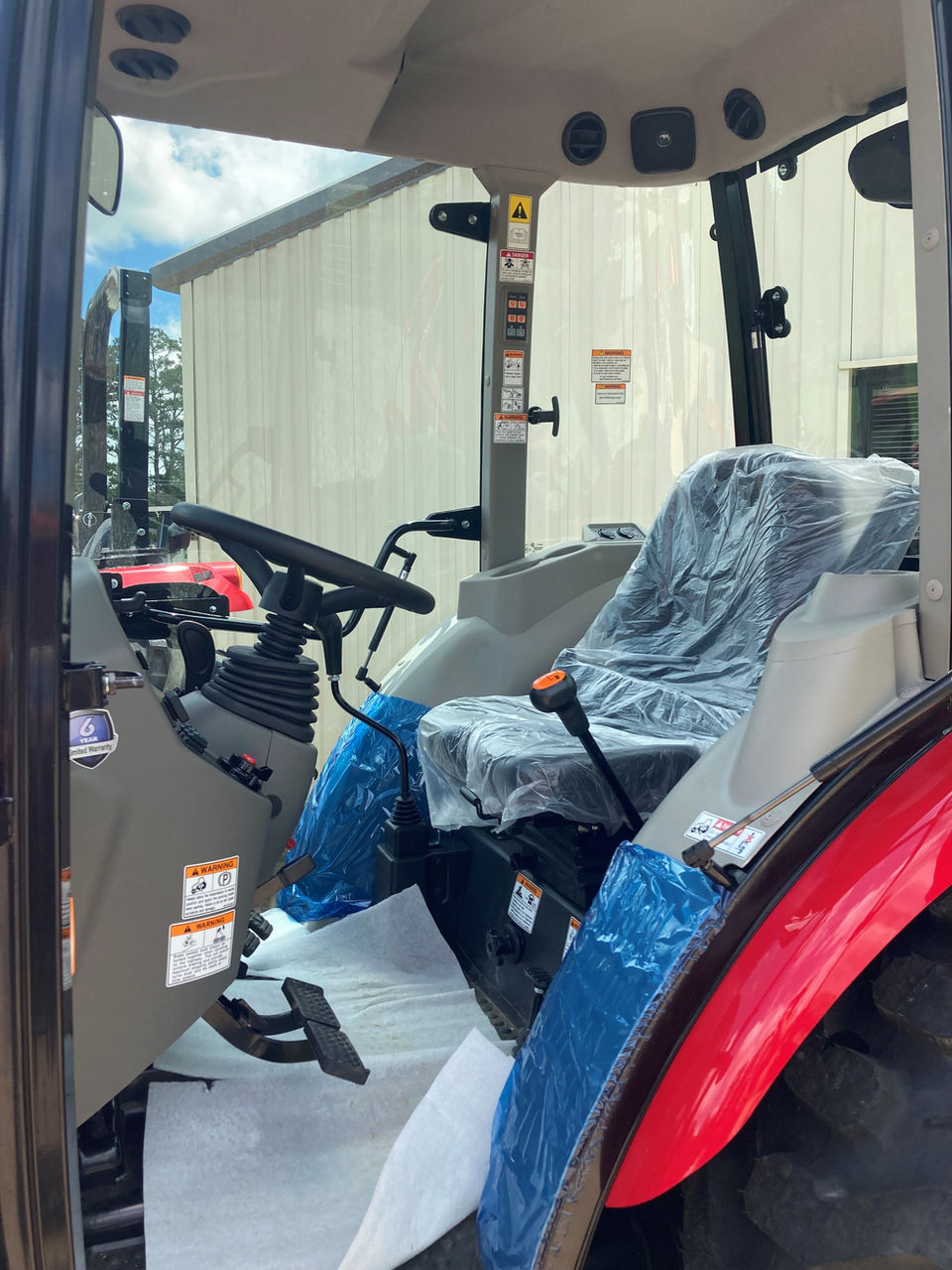

The T574C features a premium cabin equipped with modern amenities designed to enhance productivity and operator comfort. From Bluetooth-enabled speakers and charging ports to full A/C and heating systems, every detail is considered to provide a comfortable and productive work environment. The cushioned seating ensures operators stay comfortable during long working hours.


Powerful Features for Enhanced Performance:

The TYM T574 tractor is equipped with features that enhance versatility and productivity. The telescopic linkages allow for easy connection and swapping of implements, eliminating the need for operator intervention. The stabilizers ensure the tractor adapts to implements of varying loads, optimizing performance without overburdening the engine.


The heavy-duty 4WD front axle provides the capability to lift heavy loads and tow large implements. The powerful hydraulics support the power steering system, which benefits from a dual-action mechanism utilizing a hydraulic cylinder and tandem-type hydraulic pump. This combination delivers durability and smooth operation, allowing for precise control and maneuverability.


Uncover the Technical Excellence:

For those seeking detailed specifications on the TYM T574 tractor, MYM Equipment in Winnsboro will be happy to provide a comprehensive list of technical details. From engine and powertrain information to hydraulic system specifications, you can access all the necessary information to make an informed decision based on your specific requirements.


Upgrade Your TYM Tractor:

To further enhance the capabilities of your TYM T574 tractor, consider the range of compatible options and accessories available. From tire upgrades to practical accessories like block heaters and front counterweights, to an awesome backhoe attachment with  a mechanical thumb, you can customize your tractor to suit your unique needs and maximize its potential.


The TYM T574 compact tractor is the epitome of power, versatility, and maneuverability. At M&M Equipment in Winnsboro, LA, you can find the TYM T574 at an exceptional price, along with outstanding service and support. We are committed to ensuring that your TYM tractor exceeds your expectations. Visit us today to experience the TYM T574 difference at M&M Equipment.

Technical specifications

Want to be sure this tractor is right for you? Check out the specifications of this tractor model.


 T574


ENGINE

Engine manufacturer: TYM A2300T3

Type: Turbo

Gross engine power: 55 hp | 41 kW

PTO power: 44.7 hp | 32.9 kW

Rated engine speed: 2600 rpm

No. of cylinders: 4

Displacement: 139.5 cu. in.

Air cleaner: Dual Dry

Alternator: 12V, 70A

Fuel system: IDI


POWERTRAIN

Transmission type: Sync Shuttle

No. of speeds: F8xR8

Max. traveling speed: 18.45 mph

Brakes: Wet Disc

Steering: Hydrostatic

Clutch: Dry Single Plate


HYDRAULIC SYSTEM

 Pump type: Dual Gear Pump

Implement flow: 7.66 gpm

Steering flow: 4.25 gpm

Total flow: 11.91 gpm

Category, 3-point hitch: I

Hitch lift capacity: 3822 lb

Hitch lift capacity at 24 inches behind link ends: 3057 lb

Lift control type: Position/Draft

No. of standard remote valves: 2


PTO

PTO type: Independent

PTO control: Electric/Hydro

PTO rear: 540 rpm


CAPACITIES

Fuel tank: 17.0 gal

Coolant: 6.9 qt

Crankcase: 6.8 qt

Transmission/Hydraulics system: 9.2 gal

Front axle: 10.5 qt


DIMENSIONS & WEIGHTS

Overall length with 3-point hitch: 141.3 in.

Overall width: 63.8 in.

Wheelbase: 76.2 in.

Height to top of ROPS: 102.1 in.

Min. ground clearance: 13.8 in.

Min. turn radius with brakes: 121.2 in.

Min. turn radius without brakes: 131.5 in.

Weight with ROPS: 3887 lb

Weight with cab: 4233 lb


STANDARD TIRES

R1 Agricultural - Front Farm Specialist 9.5-16 NHS TL 6PR

R1 Agricultural - Rear Farm Specialist 14.9-24 NHS TL 6PR

R3 Turf - Front Multi-Trac CS 27x10.50-15 NHS TL 4PR

R3 Turf - Rear Multi-Trac CS 44x18.00-20 NHS TL 4PR

R4 Industrial - Front Trac Chief 12-16.5 NHS TL 6PR

R4 Industrial - Rear Xtra Grip 16.9-24 NHS TL 6PR



Upgrades for the Series 3, T574

Complement the capabilities of your TYM tractor with compatible options and accessories.


Options

Tire R1 Agricultural Tires F Farm Specialist 9.5-16 NHS TL 6PR R Farm Specialist 14.9-24 NHS TL 6PR

Tire R3 Turf Tires F Multi-Trac CS 27x10.50-15 NHS TL 4PR R Multi-Trac CS 44x18.00-20 NHS TL 4PR

Tire R4 Industrial Tires F Trac Chief 12-16.5 NHS TL 6PR R Xtra Grip 16.9-24 NHS TL 6PR


Accessories

Block heater

Mid-PTO kit

T85A Mechanical Thumb

Front counterweights

BHPAD200 Street Pads
